Pre-engineered Prefabricated Airport Traffic Control Tower Cabins

AJT’s team of designers works closely with the airports or authorities as well as the tower shaft designers to glean the requirements of the new cabin. Our experienced architects and engineers have worked together on over 60 ATCT projects worldwide.

Our detailed design and product data are submitted for review and we begin fabrication upon approval.

Our steel framework is fabricated in a controlled shop environment with certified tradesmen. The cab is then outfitted with the exterior envelope with licensed siding and roofing personnel. The glazing and storefront system is installed as well. The interior is outfitted with a multitude of options to include complete console furnishings and raised computer flooring as well as ceiling and dimmable lighting fixtures. Break area sink and appliances as well as isolated equipment electrical circuits and multipoint grounding are other options.

Once completely tested, the cab is split, shrink wrapped and shipped for installation on site.

AJT Prefabricated Cabins

• Seymour Johnson AFB, North Carolina
• Montserrat, West Indies
• Nouakchott International, Mauritania
• West Cairo Air Base, Egypt
• Kattamia Air Base, Egypt
• Marsh Harbour International, Bahamas
• Freeport International, Bahamas
• Camp Grayling Bombing Range, Michigan

Cabs built around controllers and their equipment installation
Functioning cab in 14 days once on site
Use as a temporary tower

Inquire about our
$200K USD low budget cab permanent/temporary/mobile

Design of Airport Traffic Control Towers

AJT has been successful in providing 26 high-quality, low-cost designs for Level I airport traffic control tower projects.

An emphasis on sound construction, quality materials and workmanship, and functional capability with budget always in mind. Required standards and spatial relationships are the goals. Tailored to the airport’s needs and budget.

Simple Functional Design — Achieved through the involvement of Authorities and airport personnel, tower operators, experienced staff, and associates in the industry.
Aesthetics — A strong and bold building while incorporating local factors and themes.
Practicality — Provide conventional workspace and equipment that incorporates economy.
Safety — Compliance with line-of-sight criteria, comm equipment requirements, building and fire, and local code enforcement.

AJT Designs

Cobb County Kennesaw, GA
Hammond Northshore, LA
Greenwood Leflore, MS
Hernando County, FL
Shuttle Landing Facility, FL
Mesquite Metro, TX
Collin County Regional, TX
Victoria Regional, TX
Branson, MO

Rogers Municipal, AR
Cheyenne, WY

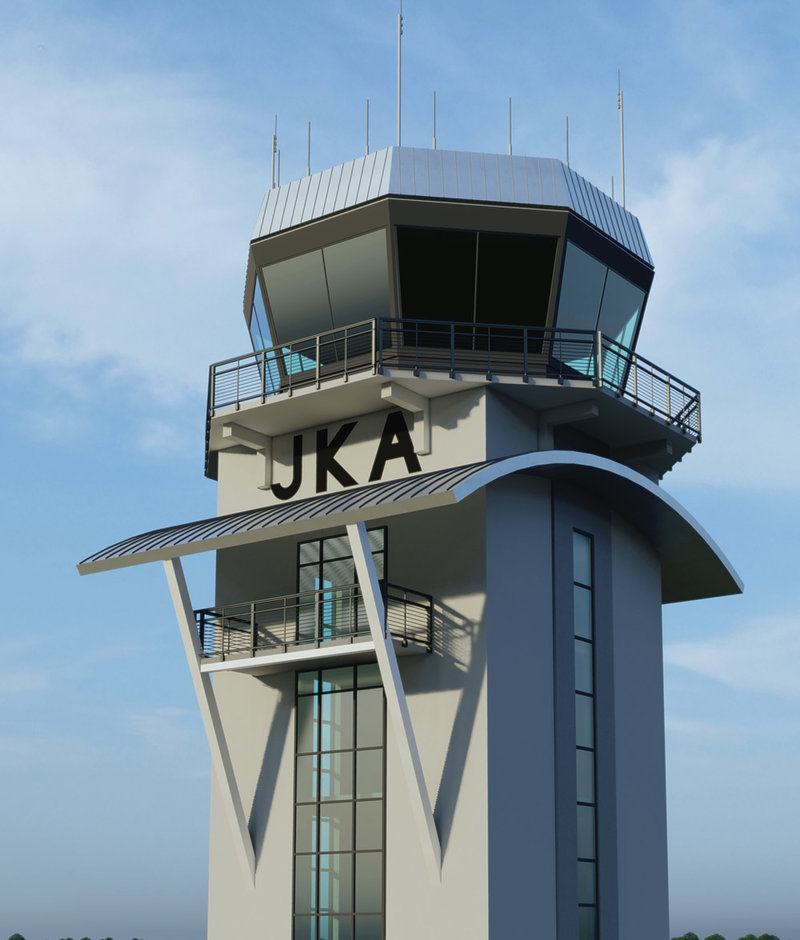

Gulf Shores, AL
Ormond Beach, FL
Chicago Romeville, IL

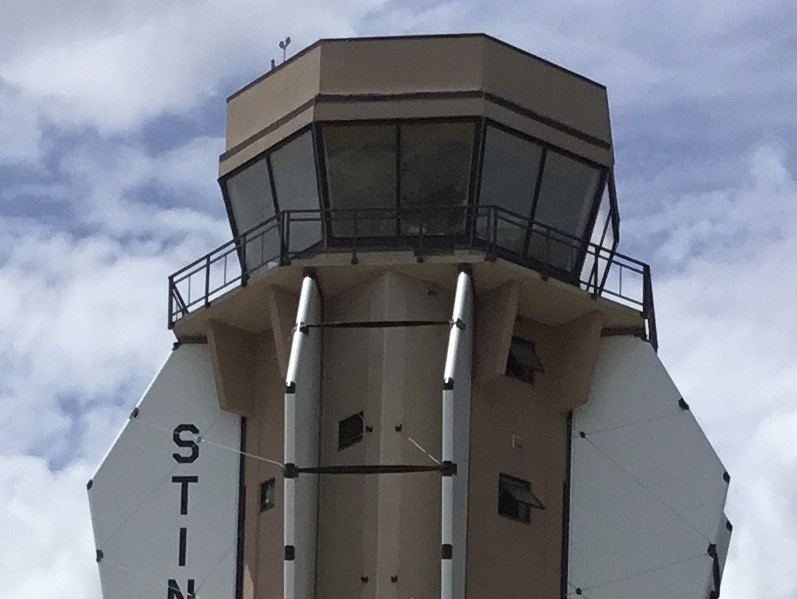

Stinson Municipal, TX
TSTC Waco, TX
New Braunfels, TX

Countless studies and concept designs

Interior Build out

Bare, Partial or Full Interior Build out is available. We provide completely custom plywood/laminate cabinets at a fraction of the steel console price. We can also provide the cab as console ready for installation of the steel consoles.

Size, Configuration and Adaptability

Our prefab cab are available in all sizes.  We will adapt to your tower shaft size.
Minimum size of 6m horizontally across flats recommended, 7.3m is our standard (pictured above). We have completed an 11m cab. Eight sided cabs are well suited for reflectance.  We have provided 4 and 6 sided cabs with a 10 sided unit in design. Our cab design provides a full 360 degree view.

Features

• Multiple glazing options
• Sunshades-Manual or Motorized
• Black Ceiling Tile and Fixtures
• Turret, Strip Holders, Grommets and Penetrations exactly where needed
• Wrist Guard Edges, Plexiglas Document Indents
• Base Cabinets Built Out as Desired
• Electrostatic Dissipating Carpet
• Dimmable Pin Spot Light
• HVAC includes quiet efficient slim line systems
• Incorporate shaft AC Diffusers into cab sills
• Isolated Power Panel & Equipment Ground
• Complete accommodation for radio equipment
• Concealed Cab/Roof Cable Raceway
• 20 Yr Roof system
• Built in Antenna Mounting System
